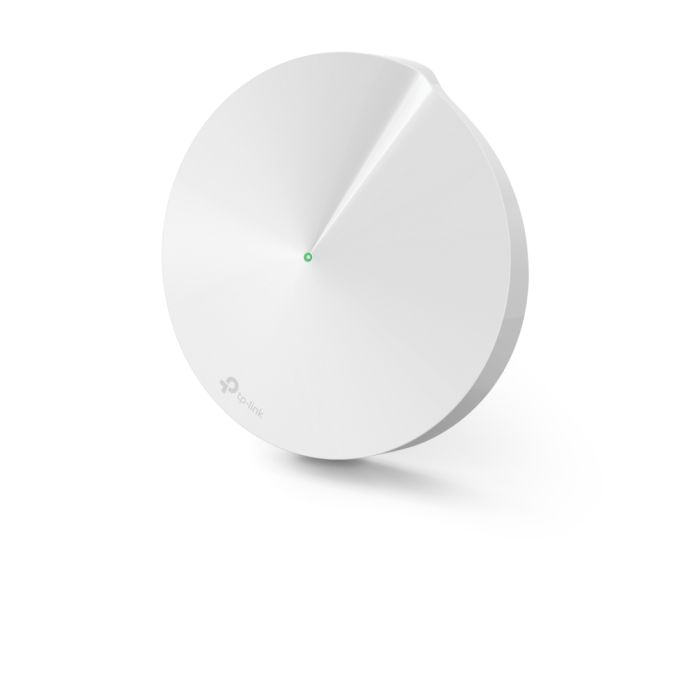

TPLINK DECO M5 (1-PACK) AC1300 DUAL-BAND WHOLE HOME MESH WIFI SYSTEM

AC adapter input

100-240V ~ 50/60Hz 0.4A

AC adapter output

12V ? 1.2A

Processor

Quad-core CPU

Interface

2 LAN/WAN Gigabit Ethernet Ports

Button

1 Reset button on the underside

External Power Supply

12 V/1.2 A

Dimensions

Φ4.7 in. x 1.5 in. (Φ120 mm x 38 mm)

Antenna

4 internal antennas per Deco unit

Bluetooth version

4.2 and above

Wireless Standards

IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

400 Mbps on 2.4 GHz
867 Mbps on 5 GHz

Transmit Power

FCC: <30 dBm
CE: <20 dBm (2.4 GHz)
<23 dBm (5 GHz)

Wireless Security

WPA-PSK/WPA2-PSK

Advanced Functions

·         Router/ Access Point Mode

·         Optional Ethernet Backhaul

·         TP-Link Mesh Technology

·         MU-MIMO

·         Auto Path Selection

·         Self-Healing

·         AP Steering

·         Band Steering

·         Beamforming

Quality of Service

WMM

IPv6

Support

WAN Type

Dynamic IP/Static IP/PPPoE

Management

Local Management, Remote Management

DHCP

Server, Client

Port Forwarding

Support

Access Control

Blacklist

Firewall Security

SPI Firewall

Protocols

Supports IPv4 and IPv6

Advanced Features

Homecare:
Antivirus
Parental Controls
Quality of Service

Advanced Functions

Speedtest
Monthly Usage Reports
Auto FW Update
Expand for more deco

Guest Network

2.4 GHz guest network * 1
5 GHz guest network * 1

Beamforming

Support

APP

Easy setup by Deco App

Certification

CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS

Package Contents

Deco M5 (1-pack):
1 x Deco unit
1 x RJ45 Ethernet Cable
1 x Power Adapter

Smartphone/Tablet Requirements

iOS 9.0 or later
Android 4.4 or later
Bluetooth 4.0 or later

Environment

Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
