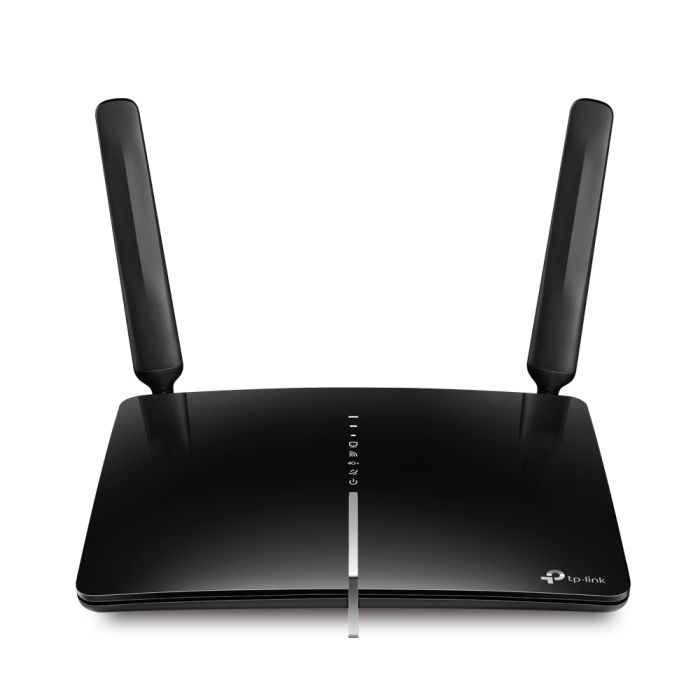

TPLINK ARCHER MR600 4G+ CAT6 AC1200 WIRELESS DUAL BAND ROUTER

Interface

1 × 10/100/1000 Mbps LAN/WAN Port
3 × 10/100/1000 Mbps LAN Ports
1 × Micro SIM Card Slot

Button

WPS Button, Reset Button, WiFi On/Off Button, Power On/Off Button

External Power Supply

Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 1.5A

Dimensions ( W x D x H )

9.0×6.3×1.5 in ( 229×160×37 mm)

Antenna

2 × Detachable 4G LTE Antennas

Wireless Standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz

Reception Sensitivity

5 GHz: 11a 54M: -74 dBm
11ac HT20: -66 dBm
11ac HT40: -63 dBm
11ac HT80 : -59 dBm
11n HT20: -73 dBm
11n HT40: -70 dBm
2.4 GHz: 11g 54M: -74 dBm
11n HT20: -72 dBm
11n HT40: -69 dBm

Transmit Power

< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics

WAN Failover

Yes

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type

4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Quality of Service

Bandwidth Control

Security

DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management

TP-Link Cloud, Local Management, Remote Management

DHCP

Server, DHCP Client List, Address Reservation

Port Forwarding

ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

TP-Link, DynDns, NO-IP

VPN

PPTP VPN, IPSec VPN , OpenVPN

Access Control

Parental Control, Local Management Control

Firewall Security

DoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding

Protocols

IPv4, IPv6

Guest Network

2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1

Certification

CE, RoHS

Package Contents

4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router 1 x 1 x Archer MR600
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide

System Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Micro SIM Card

Environment

Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
