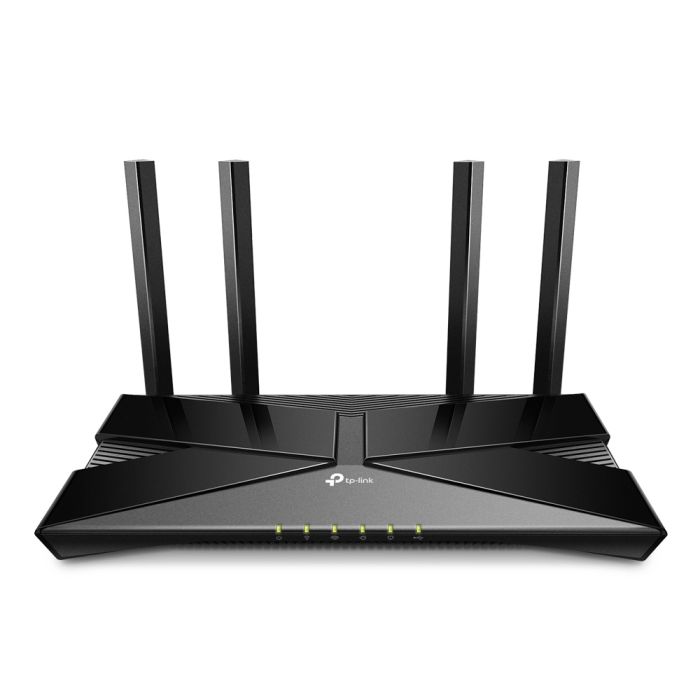

TPLINK ARCHER AX20 AX1800 DUAL-BAND WI-FI 6 ROUTER

Standards

Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)

WiFi Range

4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas (3 Bedroom Houses)

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage

WiFi Capacity

High

Dual-Band

OFDMA

Airtime Fairness

4 Streams

Working Modes

Router Mode
Access Point Mode

Processor

1.5 GHz Quad-Core CPU

Ethernet Ports

1× Gigabit WAN Port
4× Gigabit LAN Ports

USB Support

1× USB 2.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server

Buttons

WPS/Wi-Fi Button
Power On/Off Button
LED On/Off Button
Reset Button

Power

12 V ? 1.5 A

WiFi Encryption

WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

Network Security

SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network

1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

VPN Server

OpenVPN
PPTP

Protocols

IPv4
IPv6

OneMesh™

OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem

Parental Controls

URL Filtering
Time Controls

WAN Types

Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service

QoS by Device

Cloud Service

Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS

Dimensions (W×D×H)

10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)

Package Contents

Wi-Fi Router Archer AX20
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
