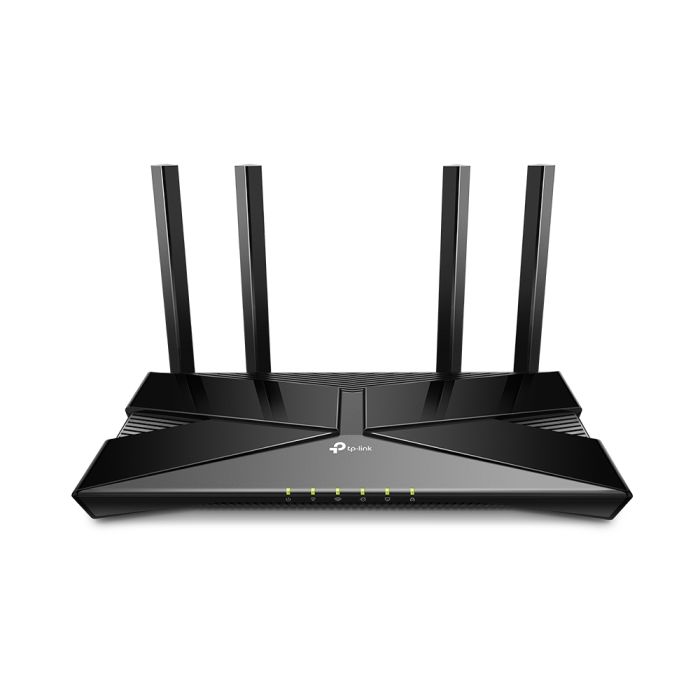

TPLINK ARCHER AX10 AX1500 DUAL-BAND WIRELESS AX ROUTER

Standards

Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)

WiFi Range

Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas (3 Bedroom Houses)

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity

(High)

Dual-Band

OFDMA

Airtime Fairness

4 Streams

Working Modes

Router Mode
Access Point Mode

Processor

1.5 GHz Triple-Core CPU

Ethernet Ports

1× Gigabit WAN Port
4× Gigabit LAN Ports

Buttons

WPS/Wi-Fi Button
Power On/Off Button
LED On/Off Button
Reset Button

Power

12 V ? 1 A

WiFi Encryption

WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

Network Security

SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network

1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

VPN Server

OpenVPN
PPTP

Protocols

IPv4
IPv6

Parental Controls

URL Filtering
Time Controls

WAN Types

Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service

QoS by Device

Cloud Service

Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding

Port Forwarding
Port Triggering
DMZ
UPnP

IPTV

IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP

Address Reservation
DHCP Client List
Server

DDNS

TP-Link
NO-IP
DynDNS

Management

Tether App
Webpage

PHYSICAL

Dimensions (W×D×H)

10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)

Package Contents

Wi-Fi Router Archer AX10
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications

FCC

Environment

Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
