SKU
PROLINK-1409
In stock

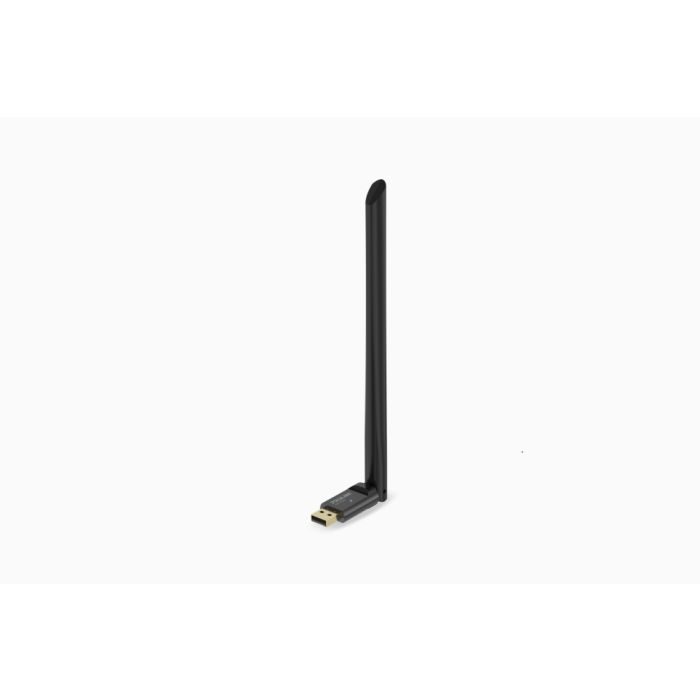

PROLINK DH-5103U 650Mbps WIRELESS-NANO USB ADAPTER WITH EXTERNAL 6dBi ANTENNA
warranty (months): 24
BND 28.00
• DUAL-BAND WIRELESS - It has the capability to receive Wi-Fi signals on two separate bands and allow you to choose the best Wi-Fi band between 2.4G GHz and 5 GHz.
• HIGH-SPEED WI-FI - It supports 256 QAM technology to boost 2.4GHz data rate from 150Mbps to 200Mbps achieving 33% faster performance.
• HIGH-GAIN ANTENNA - The 6dBi High-Gain Antenna USB adapter is able to increase the reception and transmission strength of Wi-Fi signals.
• ROTATABLE ANTENNA - The rotatable high-gain 6dBi antenna is able to improve the user experience for better reception and performance at different surroundings.
• ADVANCE SECURITY - Keep your wireless network safe from intruders with the WPA/WPA2 encryption standards.
• OPERATING SYSTEM - It supports Windows XP/Vista /7/8/8.1/10
|
TECHNICAL SPECIFICATIONS |
|
|
Wireless Standard |
IEEE 802.11b/g/n/ac |
|
Wireless LAN |
1T1R mode |
|
Connect Type |
USB2.0 |
|
Antenna |
High-Gain 6dBi External Antenna |
|
Wireless Frequency |
2.4GHz / 5GHz |
|
Wireless Data Rate |
11ac: Up to 433Mbps 11n: Up to 200Mbps 11g: Up to 54Mbps 11b: Up to 11Mbps |
|
Wireless Transmit Power |
Up to 20dBm (EIRP) |
|
Wireless Security |
WPA-PSK/WPA2-PSK WPA3 WEP |
|
Supported Operating System |
Windows XP/Vista/7/8/8.1/10 Linux MacOS 10.6 ~ 10.15 |
DIMENSION & WEIGHT |
|
|
Dimension |
245mm x 19mm x 13.5mm (L x W x H) |
|
Weight |
- |
PACKAGE CONTENT |
1 x DH-5103U Wireless Adapter 1 x Quick Installation Guide (QIG) 1 x Installation CD |
