SKU
PROLINK-0013
In stock

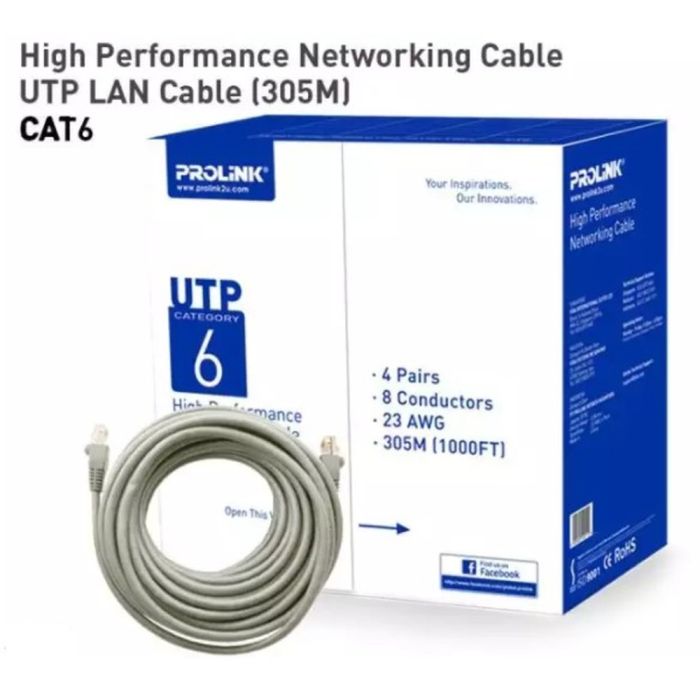

PROLINK CAT6 RJ45 NETWORK CABLE (305 METER)
warranty (months): 0
BND 118.00
- 4-pair unshielded twisted pair (UTP) cable
- Thicker conductor diameter for higher reliability and higher data rates
- Packaged in an easy to pull box for convenience installation
- Higher signal to noise ratio
|
Operating Temperature |
75°C |
|
Packing |
Easy-pull boxes/Cable length of 305M |
|
CONSTRUCTION |
|
|
Conductor |
23 AWG (4 pair) |
|
Conductor Diameter |
0.56±0.02mm |
|
Insulation |
High Density Polyethylene |
|
Insulation Diameter |
0.93±0.02mm |
|
Pairs |
2 Insulated conductors twisted together |
|
Cable Diameter |
|
|
Printing |
Each meter printed with sequential length counter |
|
Jacket Nominal Wall Thickness |
0.7±0.01mm |
|
Insulation Nominal Wall Thickness |
0.2mm |
|
ELECTRICAL PROPERTIES |
|
|
Characteristic Impedance |
64kHz: 125?±20% 1~250MHz: 100?±15% |
|
Conductor Resistance |
MAX 18?/100m at 20°C |
|
Insulation Resistance |
MIN 150M?/KM |
|
Mutual Capacitance |
MAX 5600pf/100M |
|
Resistance Unbalance |
MAX 5% |
|
Resistance Unbalance |
MAX 300pf/100M |
|
COLOUR CODE |
|
|
Pair No: A B C D |
Colour: White-Blue Stripe and Blue White-Orange Stripe and Orange White-Green Stripe and Green White-Brown Stripe and Brown |
|
DIMENSION & WEIGHT |
|
|
Dimension |
390 x 390 x 235mm (L x W x H) |
|
Weight |
9.67kg/roll (Cable Only) 10.53kg (With Box) |
|
PACKAGE CONTENT |
CAT6 UTP Cable |
|
|
|
